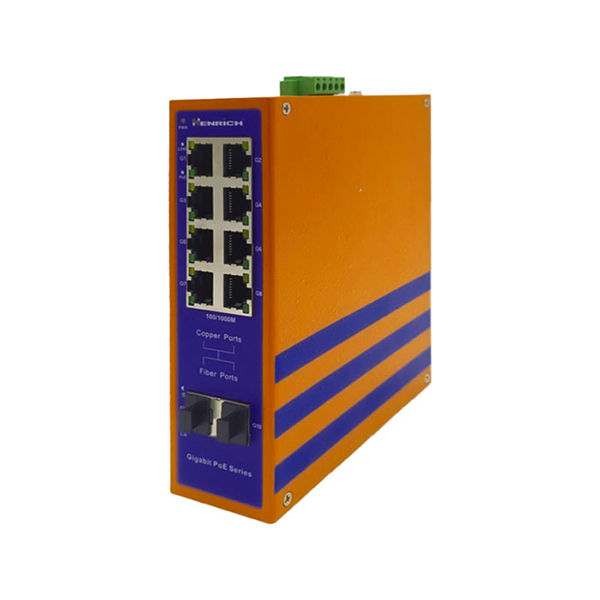

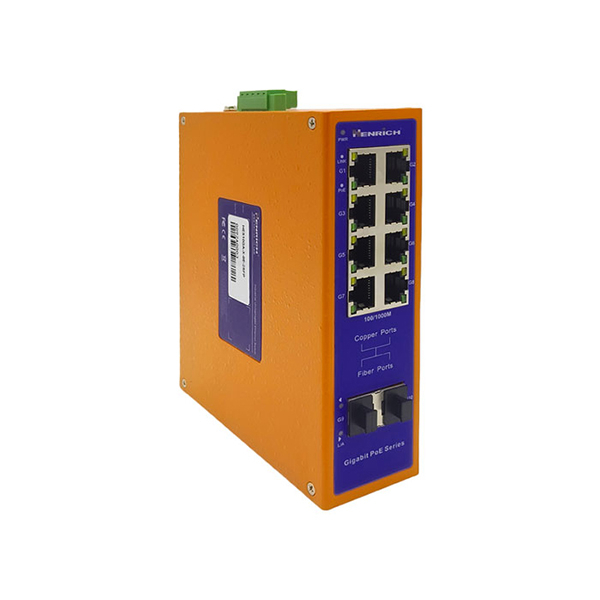

Name: Henrich HES10A-X-8E-2GSFP 10-port Din-rail Unmanaged PoE Ethernet Switch
Brand: Henrich
Price: 530.00 USD
Availability: OutOfStock

account&orders

Home

Henrich HES10A-X-8E-2GSFP 10-port Din-rail Unmanaged PoE Ethernet Switch 1

Henrich HES10A-X-8E-2GSFP 10-port Din-rail Unmanaged PoE Ethernet Switch 2

Henrich HES10A-X-8E-2GSFP 10-port Din-rail Unmanaged PoE Ethernet Switch

Manufacturer Part Number: HES10A-X-8E-2GSFP

Brand: Henrich

$ 530.00

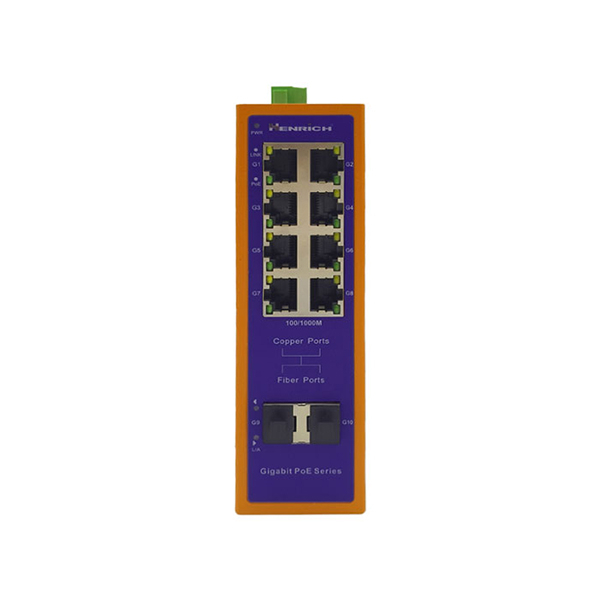

8 × 10/100BaseT(X) PoE+ Ports, 2 x 1000BaseSFP Ports
IEEE 802.3af/at PoE Standard, up to 30W Output per PoE+ Port
Operates with 240 Watts Full PoE+ Loading
2 Gigabit SFP Ports for High-bandwidth and Long-distance Communication

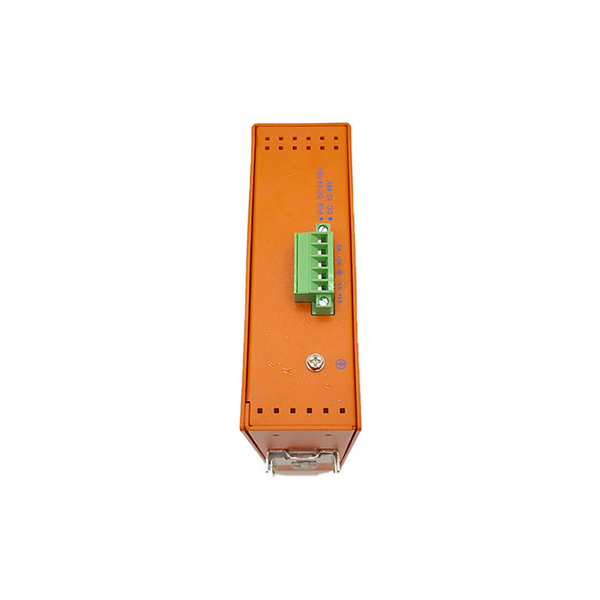

DC 44-56V Redundant Power Supply with Reverse Protection
Smart PoE power supply: power will be supplied to the high priority level port first when the power budget is insufficient and overload operation of the device will be avoided
-40°C to 75°C Operating Temperature

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: June 3, 2026 (UTC-4)

The HES10B/10A-X series switches are smart, 10-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 8. The switches are classified as power source equipment (PSE), and when used in this way, the HES10B/10A-X series switches enable centralization of the power supply and provide up to 30 watts of power per port.
The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

Ethernet Interface

10/100BaseT(X) Port (RJ45 connector) or 1000BaseFX Port	SFP Port: 2
PoE Ports (10/100BaseT(X), RJ45 connector)	8 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE 802.3af/at
PoE Supply Pin	1/2(+) 3/6 (-)

Switch Properties

Processing Type	Store and Forward (Full Wire Speed)
MAC Table Size	8k
Packet Buffer Size	4 Mbits

Power Parameters

Input Voltage	DC 44-56V Redundant Dual Input
Operating Voltage	DC 44-56V
Power Budget	Standby: < 10W, Full load: af < 120W, at < 240W
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP30 Design
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.73" × 6.1" × 5.31" (44mm × 155mm × 135mm)

Environmental Limits

Working Temperature	-40℃ ～ 75℃
Storage Temperature	-40℃ ～ 85℃
Relative Humidity	5% to 90% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	Lightning protection: 6KV 8/20us IEC61000-4-2 (ESD) Level 3, IEC61000-4-3 (RS) Level 3, IEC61000-4-4 (EFT) Level 3, IEC61000-4-5 (Surge) Level 3, IEC61000-4-6 (Radio Frequency Transmission) Level 3, IEC61000-4-8 (Power Frequency Magnetic Field) Level 3, IEC61000-4-9 (Pulsed Magnet Field) Level 3, IEC61000-4-10 (Damped Oscillation) Level 3, IEC61000-4-12/18 (Shockwave) Level 3, IEC61000-4-16 (Common-mode Transmission) Level 3, IEC61000-6-2 (Common Industrial Standard)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE Mark, Commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
