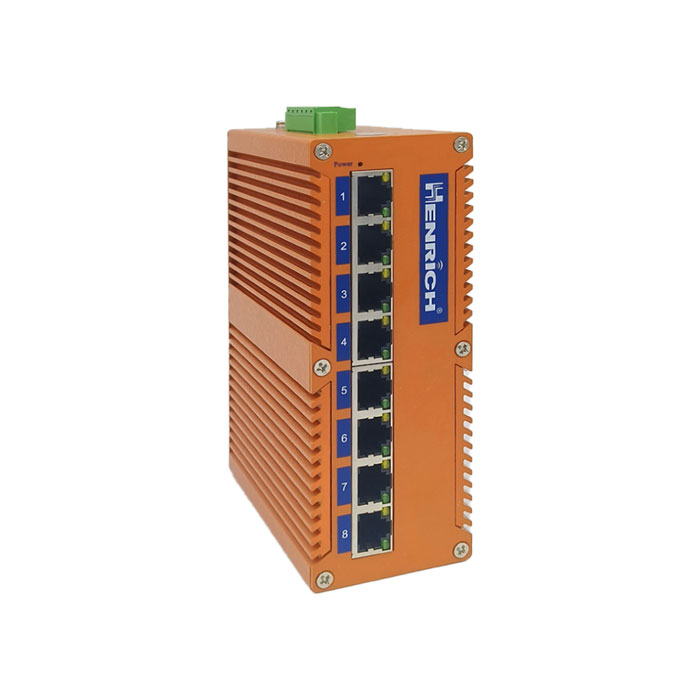

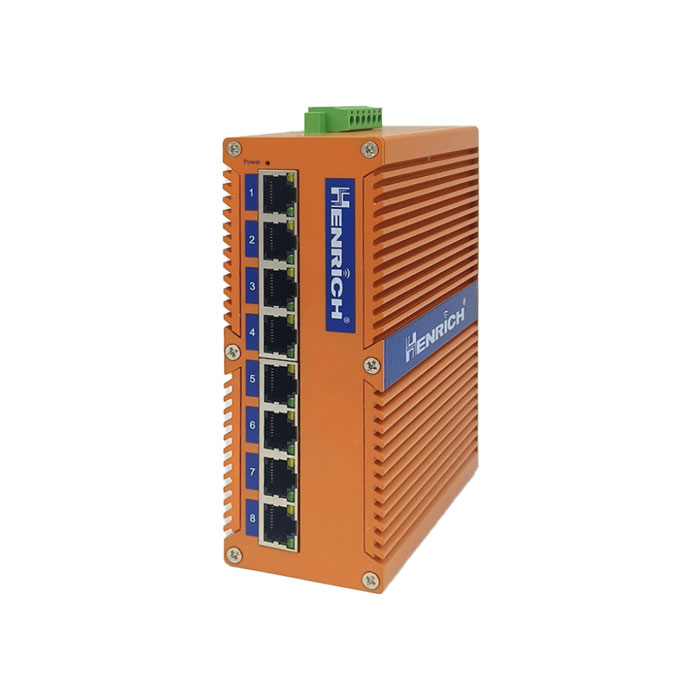

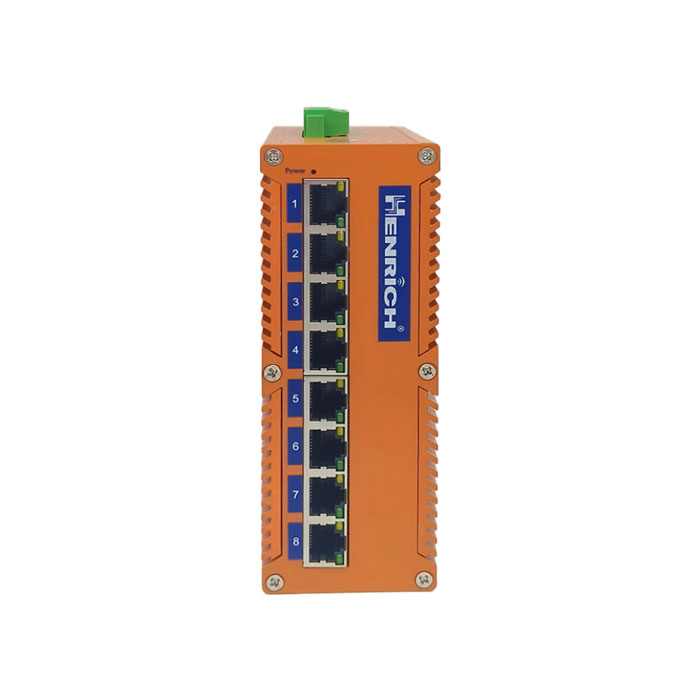

Henrich HES8GA-Z 8-port Full Gigabit Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES8GA-Z

Brand: Henrich

$ 265.00

8×10/100/1000BaseT(X) Port (RJ45 Connector)
Supports 9.2KB Jumbo Frames
12 ~ 52 VDC Redundant Dual Power Inputs
IP40 Metal Housing, Fan-less Design
Lightning Surge Protection (Power Supply): 5000A (8/20μs)
-40°C to 75°C Operating Temperature

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: June 25, 2026 (UTC-4)

The HES8GA-Z Series of industrial Ethernet switches are industrial 8 ports full gigabit Ethernet switches that support IEEE802.3u, IEEE802.3x, IEEE802.3z with 10/100/1000BaseT(X), full/half duplex, auto-adaptive RJ45 ports. This series switches is rated to operate at temperatures ranging from -40°C to 75°C. The fanless design, wide operating temperature, lightning surge protection provide the products with high performance of resistance to high and low temperature, reliability and safety of industrial network.

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 Connector)	8 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x; IEEE802.3ab

Switch Properties

Processing Type	Store and forward
Jumbo Frame Size	9.2 KB
MAC Table Size	8K
Packet Buffer Size	2 Mbits

Power Parameters

Input Voltage	12 ~ 52 VDC Redundant Dual Power Inputs
Power Consumption	< 5W
Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported
Overload Current 4.0A Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP40 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	2.1" × 5.8" × 4.1" (53.5mm ×148 mm × 103 mm)
Weight	1.41lb (640g)

Environmental Limits

Working Temperature	-40℃ ～ 75℃
Storage Temperature	-40℃ ～ 80℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part 15 Subpart B Class A, EN 55032 Class A
EMS	EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3, EN61000-4-16 (Common-mode Transmission) Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty

5 years

HES5GA-Z

Din-rail Unmanaged, 5 x 1000Mbps Copper Port, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC

HES5GA-Z-SC

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 1KM, SC Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC

HES5GA-Z-ST

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Multi-mode 1KM, ST Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC

HES5GA-Z-SFP

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC

HES5GA-Z-SSC

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC

HES5GA-Z-SST

Din-rail Unmanaged, 4 x 1000Mbps Copper Port, 1 x 1000Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -40 ~ 75 °C, Power Supply 12 ~ 52VDC

HES8GA-Z

Din-rail Unmanaged, 8 x 1000Mbps Copper Port, Industrial Temperature -40 ~ 75°C, Power Supply 12 ~ 52 VDC
