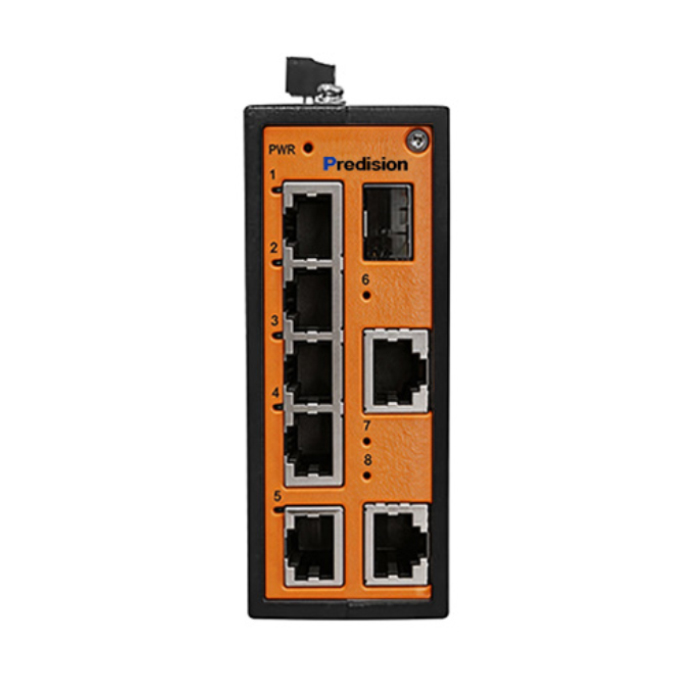

8-port Din-rail Unmanaged Ethernet Switches

Manufacturer Part Number: HES8-SFPA

Brand: Predision

$ 282.00

7 × 10/100BaseT(X) (RJ45 Connector)
1 × 100BaseFX Port (SFP Connector)
-40°C to 75°C Working Temperature Available
Designed to Meet Level 3 (Heavy) Industrial Environments
IEC/EN62368-1 Certification
IP30 Protection Class

See our Shipping Policy for delivery regions and fees

The HES8-SFP Series is a dependable, plug-and-play industrial switch offering seven copper ports and one SFP slot. It features user-friendly external DIP switches to enable QoS and Broadcast Storm Protection on the fly. With high-level EMI/EMC protection and a 100% burn-in rating, it's built to handle the toughest industrial applications.

Ethernet Interface:

10/100/1000BaseT(X) Ports (RJ45 Connector)	7 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed
100BaseFX Ports	1 (SFP Connector)
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x

Switch Properties:

Processing Type	Store and forward
MAC Table Size	4K
Packet Buffer Size	1.5 Mbits

Power Parameters:

Input Voltage	12/24/48 VDC & 24 VAC
Power Consumption	Max. 6 W
Power Connector Type	1 Removable 2-contact Terminal Block
Reverse Polarity Protection	Supported

Physical Characteristics:

Case	Metal Enclosure, IP30 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.58" × 3.94" × 2.43" (40mm × 100mm × 61.8 mm)

Environmental Limits:

Working Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC 47 CFR Part 15 Class A, EN55032 Class A, EN55035 Class A
EMS	IEC/EN61000-4-2, Level 3, IEC/EN61000-4-3, Level 3, IEC/EN61000-4-4, Level 3, IEC/EN61000-4-5, Level 3, IEC/EN61000-4-6, Level 3, IEC/EN61000-4-8, Level 5, IEC/EN61000-4-18, Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
