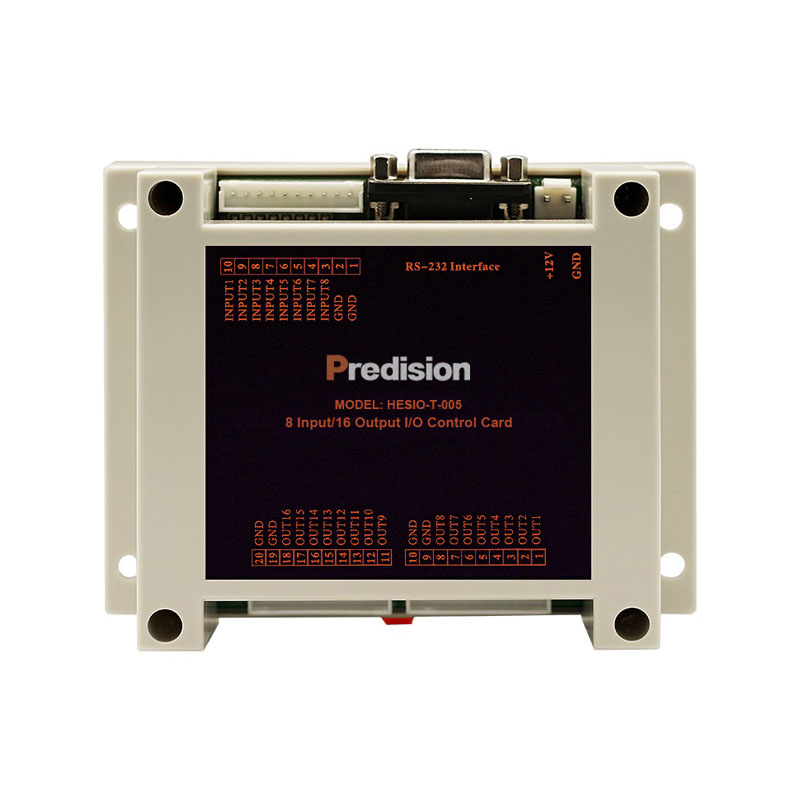

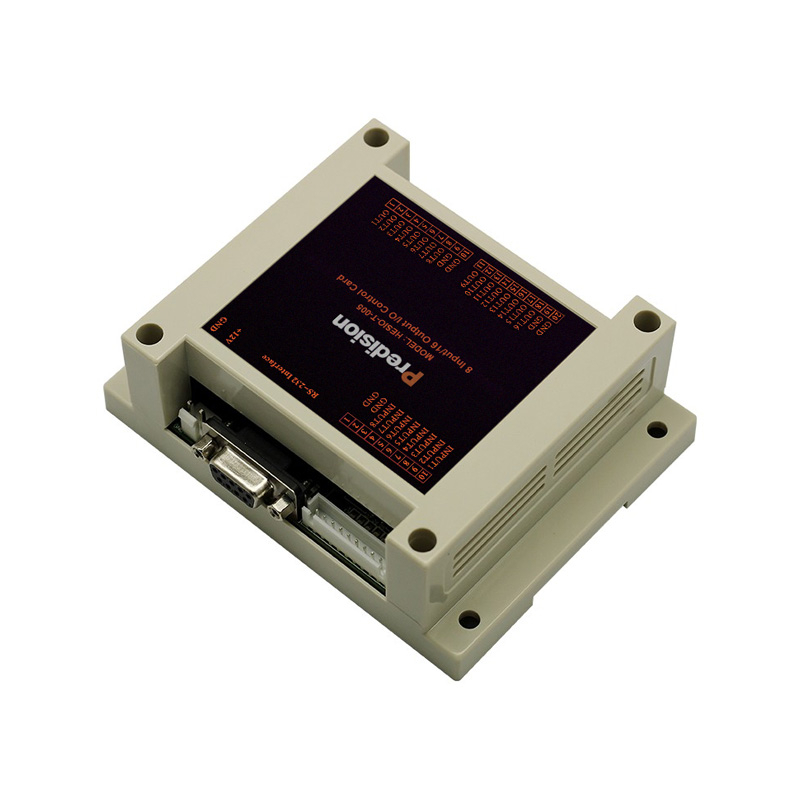

Name: Predision HESIO-T-005 8-channel Digital Input and 16-channel Voltage Output I/O Controller
Brand: Predision
Price: 237.00 USD
Availability: OutOfStock

account&orders

Home

Predision HESIO-T-005 8-channel Digital Input and 16-channel Voltage Output I/O Controller

Manufacturer Part Number: HESIO-T-005

Brand: Predision

$ 237.00

Operating Temperature: -40°C to 85°C
Power Supply: 12 VDC (No-load current ≤ 40 mA)
600W per wire Surge Protection (RS-232)
Baud Rate: 9,600 bps

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: June 1, 2026 (UTC-4)

The HESIO-T-005 is an 8-channel dry contact input and 16-channel voltage output module, featuring dedicated signal LEDs for both input and output status monitoring. Designed to high industrial standards, the module can be remotely controlled via a series of commands. It communicates with the host computer through an RS-232 serial bus using command data protocols. The communication baud rate is set at a fixed 9,600 bps. This module is widely utilized across industrial control and automation sectors.

Input Specifications	8-channel dry contact input; each channel features a signal status LED.
Output Specifications	16-channel output; 12V 500mA per channel, with signal status LEDs.
Electrical Interface	DB9 Female Connector for RS-232 Port
Interface Protection	600W per wire Surge Protection (RS-232)
Baud Rate	9,600 bps
Data Format	Data Bit 8, Stop Bit 1, No Parity
Power Supply	12 VDC (No-load current ≤ 40 mA)
Dimension	96 × 90 × 38 mm
Operating Temperature	-40°C to 85°C
Relative Humidity	5 - 95%

HESIO-T-001

8-bit 4-channel Digital Data Parallel I/O Controller, 4DI / 4DO: (0-24V) , Operating Power: 9-30 VDC / 350 mA, Isolation Voltage: 2,500 VDC, Operating Temperature: -40℃ to +85℃.

HESIO-T-002

8-bit 8-channel Digital Data Parallel I/O Controller, 8DI: (3-30V) * 8, Supports Wet Node Input, Operating Power: 9 - 30 VDC / 350 mA, Isolation Voltage: 2,500 VDC, Operating Temperature: -40°C to +85°C.

HESIO-T-004

8-bit 8-channel Digital Relay Output Controller, 8DO: Relay, Photoelectric Isolated Input Voltage: 0 - 24V, Operating Temperature: -40°C to 85°C.

HESIO-T-005

8-channel Digital Input and 16-channel Voltage Output I/O Controller, 8DI / 16DO: Dry *8 / 12V 0.5A *16, Power Supply: 12 VDC, Baud Rate: 9,600 bps, 600W per wire Surge Protection (RS-232), Operating Temperature: -40°C to 85°C.

Datasheet ： Predision_Serial_I-O_Controller_HESIO-T-005_DS_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
