Name: Predision HES8MA-T 8-port 100M Full Layer 2 Industrial Managed Ethernet Switch
Brand: Predision
Price: 541.00 USD
Availability: OutOfStock

account&orders

Home

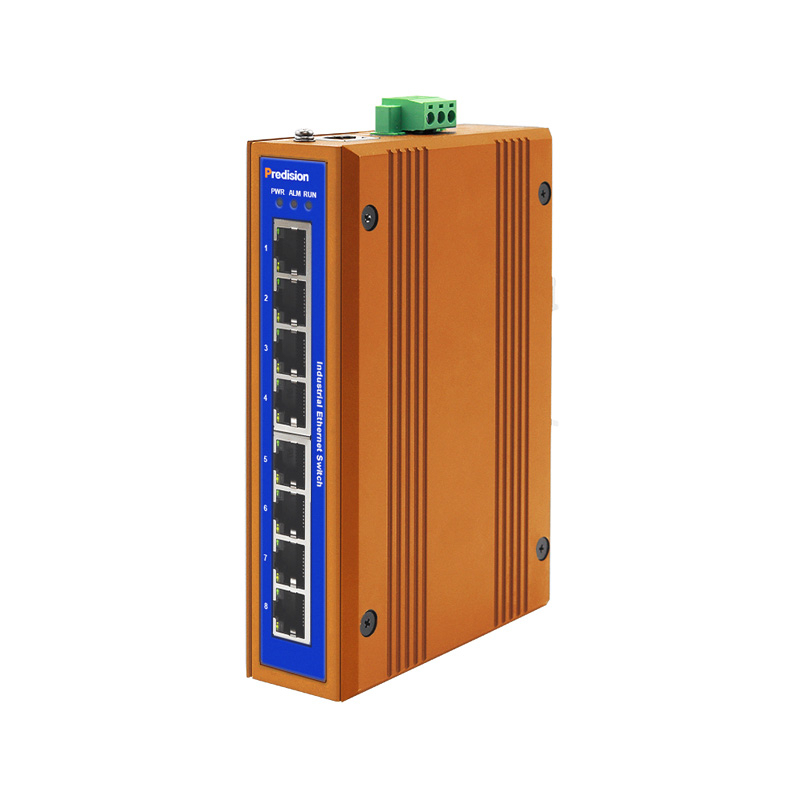

Predision HES8MA-T 8-port 100M Full Layer 2 Industrial Managed Ethernet Switch 1

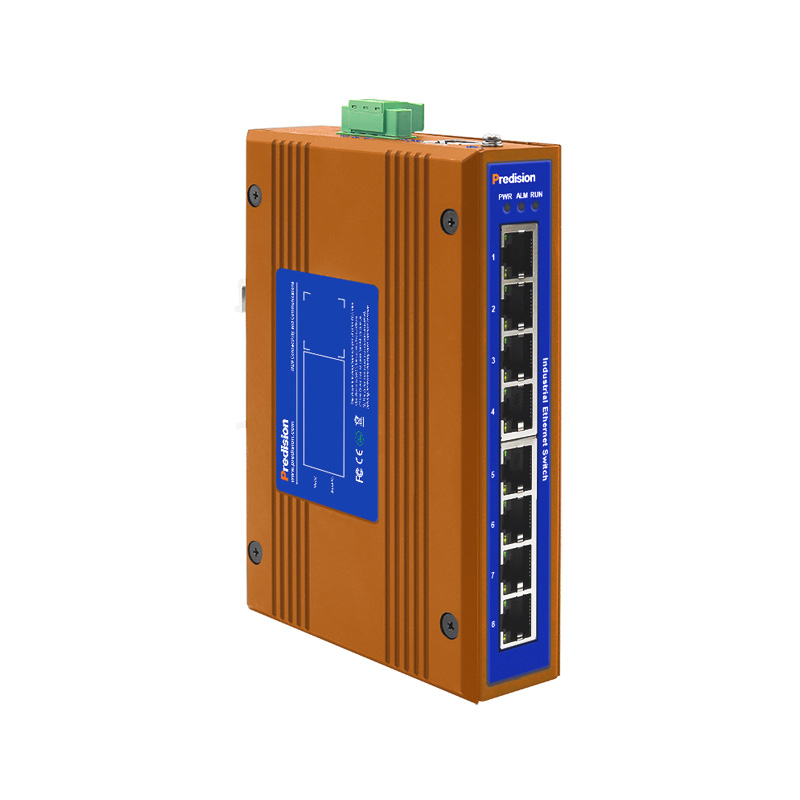

Predision HES8MA-T 8-port 100M Full Layer 2 Industrial Managed Ethernet Switch 2

Predision HES8MA-T 8-port 100M Full Layer 2 Industrial Managed Ethernet Switch

Manufacturer Part Number: HES8MA-T

Brand: Predision

$ 541.00

8 × 10/100BaseT(X) (RJ45 Connector)
Working Temperature: -40°C to 75°C
IGMP Snooping and IEEE 802.1Q VLAN Supported
STP/RSTP/MSTP, DuraRing™ Redundant Network Supported
SNMPv1/v2c/v3 Supported
Supports Port Speed Limit, Broadcast Storm Suppression, Multicast Storm Suppression, and Unknown Unicast Storm Suppression

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: June 3, 2026 (UTC-4)

HES8MA-T/HES8MB-T Series is an 8-port 100M industrial managed Ethernet switch. This series supports 8 fixed 10/100Base-T(X) Ethernet interfaces and one console port for CLI management. It adopts low power consumption, fanless design to ensure no noise interference. -40℃ to 75℃ wide operating temperature is supported. Good EMC electromagnetic compatibility performance ensures stable operation in harsh industrial environments, and providing safe and reliable solutions for the establishment of fast and stable network terminal access networks in industrial application fields such as factory automation, intelligent transportation, and video surveillance.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	8 (Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed)
Standard	EEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.10, IEEE802.1P, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.1x, IEEE802.3ad, lEEE802.1ad

Ethernet Software Features

Protocols	ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, VLAN, LLDP, DuraRing™, ACL, IGMP-Snooping, SNMPv1/v2c/3, DHCP Server, NTP, Syslog, Link FIap, UDLD, RMON, LACP, DHCP
Flow Control	IEEE802.3x Flow Control, Backpressure Flow Control

LED Interface

LED Indicators

PWR, RUN, ALM, RJ45 Indicators

Power Parameters

Input Voltage	12/24/48 VDC (10.8-52.8 VDC)
Power Consumption	Max. 150 mA @ 24V

Switching Performance

100M Ports	148,810 pps
Transmission Mode	Store and Forward
MAC Table Size	2 K
Packet Buffer Size	1 Mb
Backplane Bandwidth	2 G
Max. Frame Length	1632B

Physical Characteristics

IP Rating	IP40
Dimension (W x D x H)	37 x 100 x 150 mm
Weight	2000 g
Installation	DIN-Rail Mounted

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	5% to 95% (No Condensation)

Standards and Certifications

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
